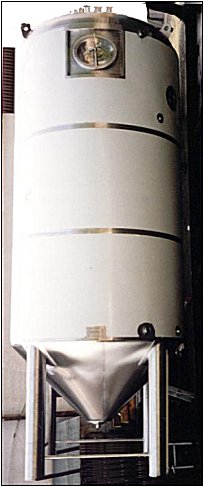

VESSEL

Gross Capacity
Net Capacity
Diameter
Height
Cone
Top
.
Manway
Inside wall
Steam Jacket
Cooling Jacket
.
CIP Sprayball
Rupture Disk
Aeration Lance
Vent
Spare
Level Transmitter
Pressure Gauge
Spare
Thermowell
Upper Sample Valve
Lower Sample Valve
Side Discharge
Standpipe Discharge
Bottom Drain
Sight Glass
Lighted Sight Glass



SPECIFICATIONS

130 bbl
100 bbl
2215 mm - 87"
5800 mm - 228"
90 or 60 degree (or custom)
Stainless Steel Dome
.
Side/Top, 60 psi (4 bar)
4 mm - 9 gauge
Cone, 85% coverage, 45 psi or 15 psi
2 side circuits, 35% coverage
.
3" T/C, Top
4" T/C, Top
2" T/C, Top
2" T/C, Top
3" T/C, Top
3" T/C, Side
2" T/C, Side
2" T/C, Side
1.5" T/C, Side
1.5" T/C, Side
1.5" T/C, Side
2" T/C, Cone
2" T/C, Bottom
2" T/C, Bottom
100 mm dia. (optional)
Fixture optional
