NEW 4BBL/5HL COMPLETE PILOT BREWING SYSTEM
(fermenting vessels double for yeast propagator)
Primarily designed to brew as small as 1-1/2 to 4 bbl trial batches in existing breweries. The system shown below is a stand-alone, portable and self-contained complete brewing system. It is a steam heated, multiple step infusion brewery with all the capabilities a large brewery possesses. This pilot brewing system can be configured as a child brewery to an existing larger brewery, thus drastically reducing its cost of acquisition.

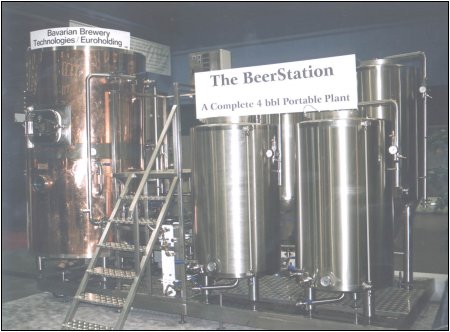

Self-contained 4bbl/5hl Pilot Brewery built by Bavarian Brewery Technologies
(The picture was taken at the Craftbrewers Convention)
SAMPLE EQUIPMENT LIST
(We will quote per your requirements)
Complete and NEW  Brew House
Fermenting Capacity as needed
150000BTU Steam Boiler
1 HP   Brew HousePump
Jacketed Serving Tanks
1 bbl Glycol Reservoir
Agitator Rakes
Control Panel

System shown above starts from: Please call
10 years warranty on all tanks; installation may be required.
For information contact: Lewis Harsanyi at Bavarian, (310) 391-1091 - Fax: (310) 391-4530
